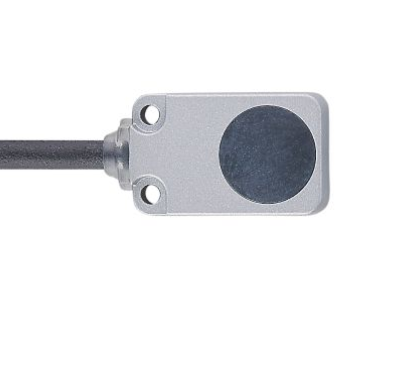

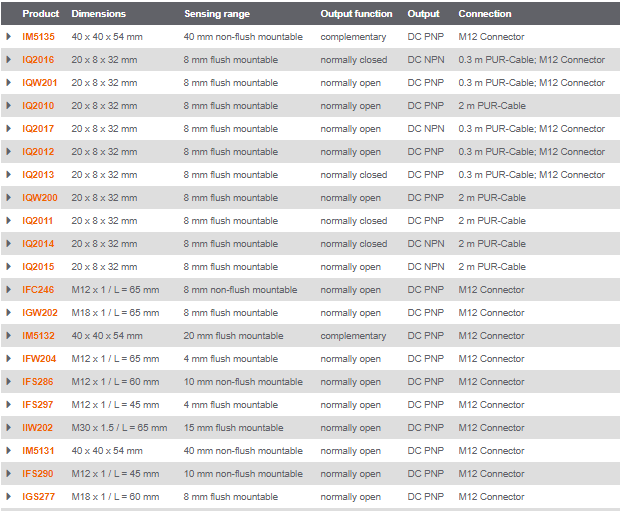

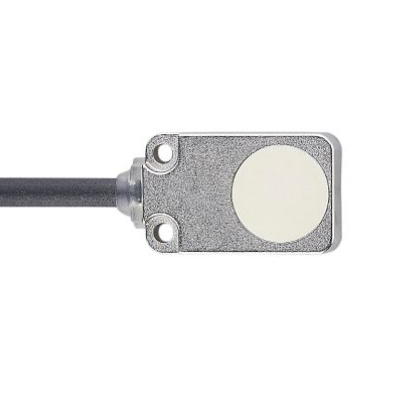

| Product characteristics |
| Electrical design |
PNP |
| Output function |
normally open |
| Sensing range [mm] |
8 |
| Housing |
rectangular |
| Dimensions [mm] |
20 x 8 x 32 |
| Application |
| Special feature |
Drag chain suitability; Increased sensing range; Magnetic-field immune; anti-spatter |
| Magnetic-field immune |
yes |
| Max. magnetic field immunity [mT] |
300 |
| Electrical data |
| Operating voltage [V] |
10...30 DC |
| Current consumption [mA] |
< 20 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Outputs |
| Electrical design |
PNP |
| Output function |
normally open |
| Max. voltage drop switching output DC [V] |
2.5 |
| Permanent current rating of switching output DC [mA] |
100 |
| Switching frequency DC [Hz] |
2000 |
| Short-circuit protection |
yes |
| Overload protection |
yes |
| Detection zone |
| Sensing range [mm] |
8 |
| Real sensing range Sr [mm] |
8 ± 10 % |
| Operating distance [mm] |
0...6.48 |
| Increased sensing range |
yes |
| Accuracy / deviations |
| Correction factor |
steel: 1 / stainless steel: 1 / brass: 1 / aluminium: 1 / copper: 1 |
| Hysteresis [% of Sr] |
3...15 |
| Switch point drift [% of Sr] |
-10...10 |
| Operating conditions |
| Ambient temperature [°C] |
-40...85 |
| Protection |
IP 65; IP 66; IP 67; IP 68 |
| Tests / approvals |
| EMC |
| EN 61000-4-2 ESD |
4 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated |
10 V/m |
| EN 61000-4-4 Burst |
2 kV |
| EN 61000-4-6 HF conducted |
10 V |
| EN 55011 |
class B |
|
| Vibration resistance |
| EN 60068-2-6 Fc |
20 g (10...3000 Hz) / 50 sweep cycles per frequency; 1 octave per minute in 3 axes |
|
| Shock resistance |
| EN 60068-2-27 Ea |
100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
|
| Continuous shock resistance |
| EN 60068-2-27 |
40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes |
|
| Fast temperature changes |
| EN 60068-2-14 Na |
TA = -40°C; TB = 85°C; t1 = 30 min; t2 = < 10 s 50 cycles |
|
| Mechanical data |
| Weight [g] |
40.9 |
| Housing |
rectangular |
| Mounting |
flush mountable |
| Dimensions [mm] |
20 x 8 x 32 |
| Materials |
diecast zinc anti-spatter; sensing face: LCP black; LED window: TPU; potting: PUR |
| Drag chain suitability |
yes |
| Drag chain suitability |
| bending radius for flexible use |
min. 10 x cable diameter |
| bending cycles |
> 5 Mio. |
|
| Displays / operating elements |
| Display |
| Display operation |
1 x LED, green |
| switching status |
1 x LED, yellow |
|
| Remarks |
| Pack quantity |
1 pcs. |
| Electrical connection |
| Connection |
Cable: 0.3 m, PUR, Ø 4.9 mm; 3 x 0.34 mm² |
| Connection |
Connector: 1 x M12 |
