Bearings-234422BM1



Mã: Bearings-234422BM1

Hãng sản xuất: HBB

Bảo hành: 12 Tháng

Tình trạng:

Tồn: Click vào đây để xem

Đơn giá: gọi (+844) 3675 0587 để biết giá

Đặt hàng online

Cho vào giỏ hàng

Gọi điện mua hàng

Hà Nội

024 3675 0587
024 3675 0587
phone
Mrs Trang 024 3675 0587
phone
Nhân viên kinh doanh

Specifications: Bearings 234422BM1

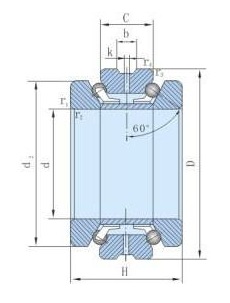

kich thuoc 234406BM1.jpg

Boundary dimension

Basic load ratings

Limiting speeds

Mass

Designation

dynamic

static

d

D

H

d2

C

Cr

Cor

grease

oil





mm





min

min

KN

r/min

    Kg



110

170

72

150

36

93

335

3800

4500

5.05

234422BM1

114

170

72

150

36

93

335

3800

4500

4.65

234722BM1

120

180

72

160

36

93

360

3400

4000

5.70

234424BM1

124

180

72

160

36

93

360

3400

4000

5.00

234724BM1

130

200

84

177

42

116

455

3200

3800

8.15

234426BM1

135

200

84

177

42

116

455

3200

3800

7.45

234726BM1

140

210

84

187

42

116

475

3000

3600

8.65

234428BM1

145

210

84

187

42

116

475

3000

3600

7.85

234728BM1

150

225

90

200

45

140

570

2600

3200

10.5

234430BM1

155

225

90

200

45

140

570

2600

3200

9.75

234730BM1

160

240

96

212

48

156

640

2400

3000

14.0

234432BM1

165

240

96

212

48

156

640

2200

3000

12.0

234732BM1

170

260

108

230

54

196

780

2200

2800

17.5

234434BM1

175

260

108

230

54

196

780

2200

2800

16.0

234734BM1

180

280

120

248

60

224

915

2000

2600

23.0

234436BM1

185

280

120

248

60

224

915

2000

2600

21.0

234736BM1

190

290

120

258

60

224

950

1900

2400

24.0

234438BM1

195

290

120

258

60

224

950

1900

2400

22.0

234738BM1

200

310

132

274

66

265

1100

1900

2400

31.0

234440BM1

207

310

132

274

66

265

1100

1900

2400

28.5

234740BM1

kich thuoc 234406BM1-hinh2.png

Dimensions

Abutment and fillet dimensions







r1.2

r3.4

da

Da

ra

rb

d

k

b

min

min

min

   max

   max

    max

mm

mm

110

4.5

8.30

2.0

0.6

132

161

2

0.6

114

4.5

8.30

2.0

0.6

132

161

2

0.6

120

4.5

8.30

2.0

0.6

142

171

2

0.6

124

4.5

8.30

2.0

0.6

142

171

2

0.6

130

6.0

11.1

2.0

0.6

156

190

2

0.6

135

6.0

11.1

2.0

0.6

156

190

2

0.6

140

6.0

11.1

2.1

0.6

166

200

2

0.6

145

6.0

11.1

2.1

0.6

166

200

2

0.6

150

7.5

13.9

2.1

0.6

178

213

2

0.6

155

7.5

13.9

2.1

0.6

178

213

2

0.6

160

7.5

13.9

2.1

0.6

190

227

2

0.6

165

7.5

13.9

2.1

0.6

190

227

2

0.6

170

7.5

13.9

2.1

0.6

204

246

2

0.6

175

7.5

13.9

2.1

0.6

204

246

2

0.6

180

9.0

16.7

2.1

0.6

214

264

2

0.6

185

9.0

16.7

2.1

0.6

214

264

2

0.6

190

9.0

16.7

2.1

0.6

224

274

2

0.6

195

9.0

16.7

2.1

0.6

224

274

2

0.6

200

9.0

16.7

2.1

0.6

236

292

2

0.6

207

9.0

16.7

2.1

0.6

236

292

2

0.6


Double direction thrust angular contact bearings
